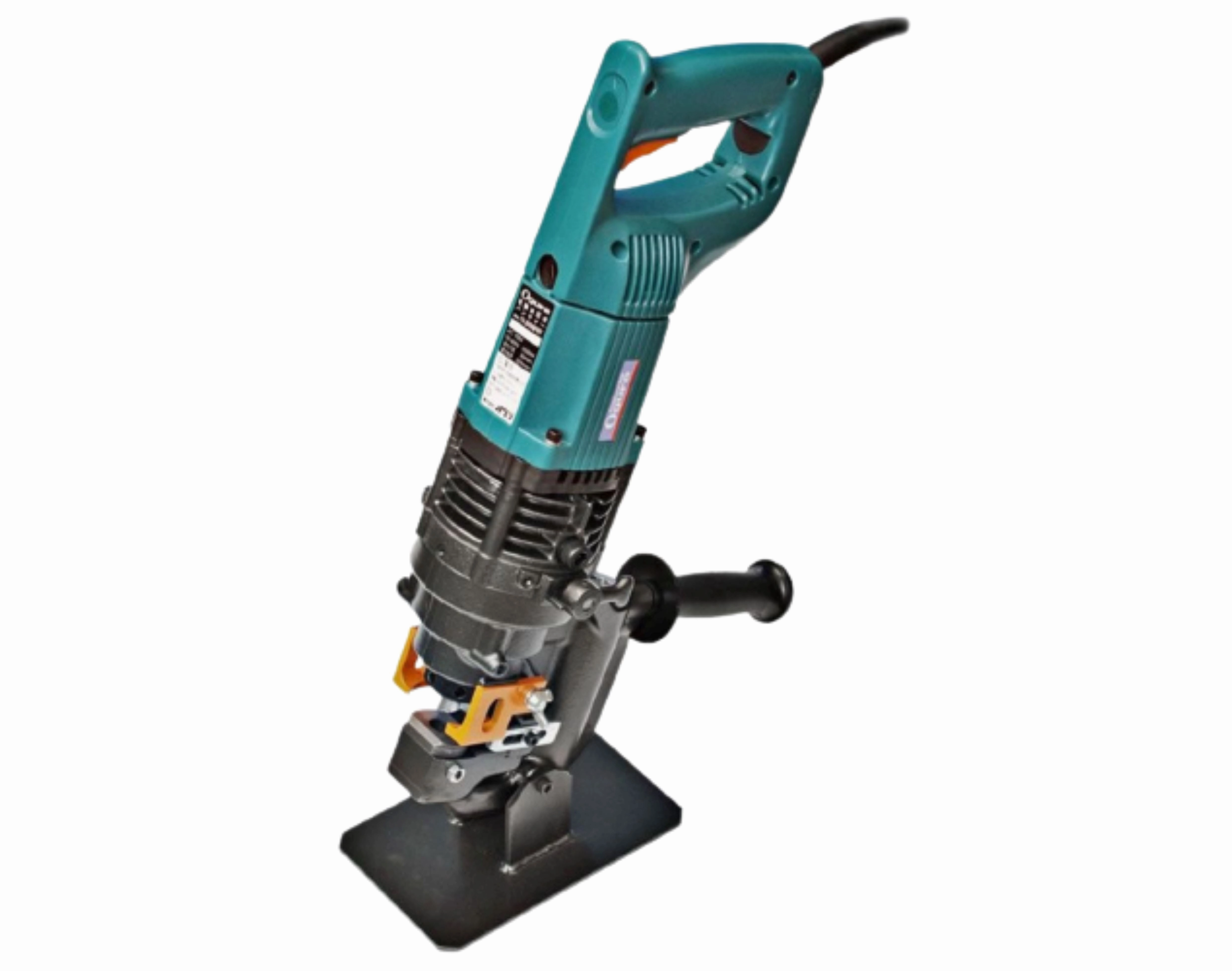

Ogura HPC-N209W Hydraulic Hole Puncher | Model : OG-HPC-N209W

Features :

• New punch design makes it easier to confirm the hole position.
• "Double acting" hydraulic return for jam free operation.
• Hole puncher is specifically designed to provide high quality holes quickly and efficiently.

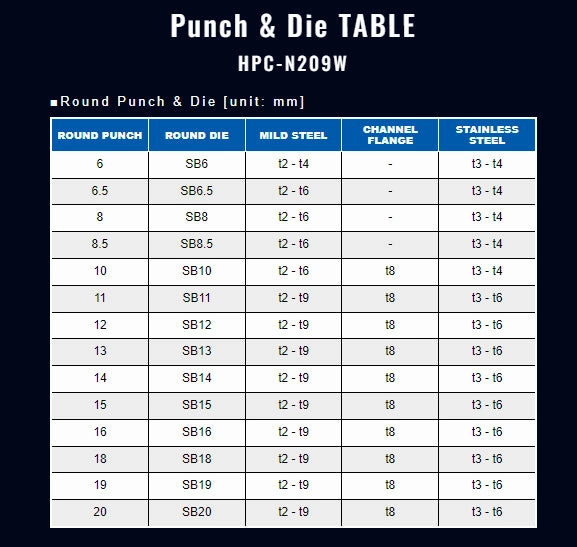

• Maximum hole size: φ20 ⁄ t9mm (mild steel)
• "N" series is▲▲▲▲
• The new "N" series punchers are double acting with a new designed punch holder for longer life. The "N" series punch has also been redesigned so that only one punch is required to punch the range of materials: mild steel, stainless steel, angle iron and channel steel. The center of the punch has been made wider for easier positioning.
• - Both punching and retracting are completed by hydraulic power. This solves the "punch jammed" problem and allows uninterrupted and faster work.
• - Following a review by our customers, we changed the design of the die, punch & punch holder to make them more durable and to make the setting of the punch & die easier.

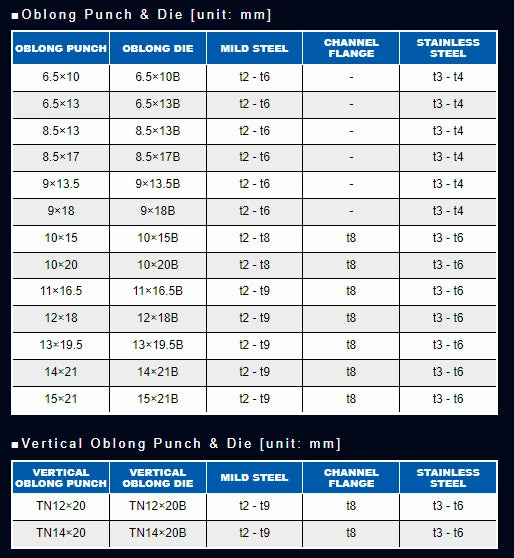

• - Only one die for flat bar, angle steel and channel flange is required. It is not necessary to change the die when punching different materials or thicknesses.
• ※Thinner material (t2-3.2mm) may have some burrs or deformation.
• - New punch design makes it easier to confirm the hole position.

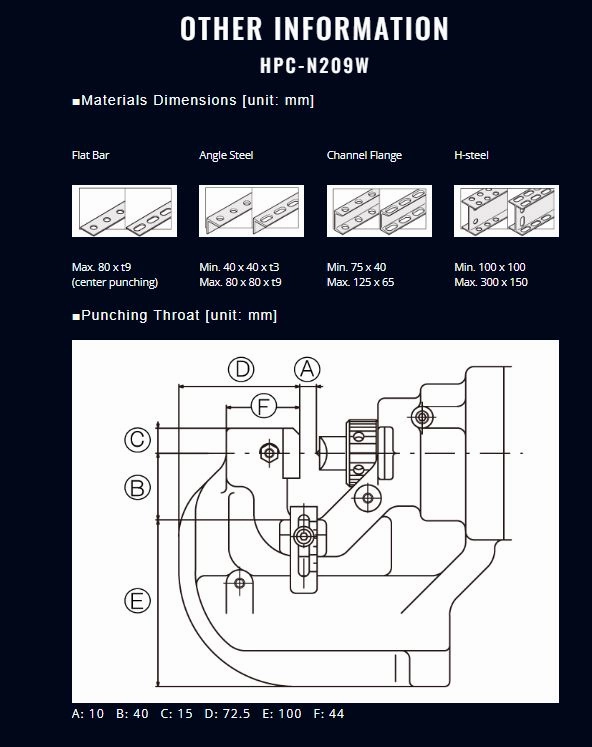

Specifications :
